High throughput & reliable Quality Control

AVIT-DT removes unreliable human subjectivity from the entire inspect-clean cycle. With lightning fast speeds and integrated cleaning, operators can simply hit the process button and walk away, freeing up time to complete other critical tasks or conduct additional tests on another AVIT system. Using the 50k view on the AVIT software gives operators the ability check on the test with just a glance from across the room.

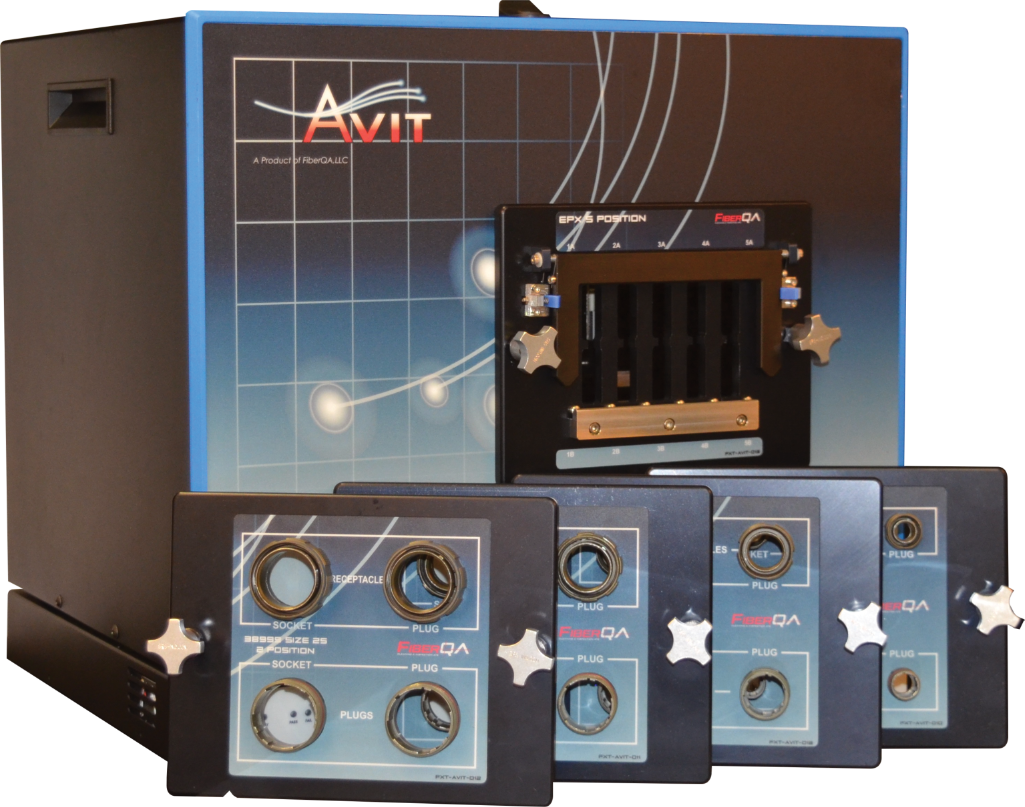

AVIT-DT uses customized fixtures that attach to the 5"x 5" inspection window to provide high throughput inspection + cleaning to fiberoptic connector endfaces. AVIT-DT will pass or fail a part using strict, enforceable criteria. If a ferrule fails, the fiberscope system will automatically clean and re-inspect the part without being removed, which can cause damage to the connector during multiple re-insertions. Users can set the number of inspect-clean cycles before the part is considered an ultimate failure.

AVIT-DT can be used for reliable Quality Control throughout the entire supply chain, from manufacturing to installation. Manufacturers have seen returned parts be reduced to ZERO with the adoption of AVIT systems in their facilities. AVIT-DT is the best option for inspecting and cleaning high volumes of MT, MPO, MIL-circular, and other connectors.

All AVIT™ models are protected under US Patent.

Related Products


AVIT-2020


AVIT-BP


AVIT-RH


FastMT

FAQ

What does AVIT mean?

AVIT is an acronym that stands for Automated Visual Inspection Tool…the name stuck!

How many ferrules can be inspected using an AVIT-2020?

We can develop a custom fixture for your needs, but we have cards that can fit 54+ ferrules. We can fit many more ferrules because of the large 20”x 20” inspection window.

If a ferrule fails, do I have to remove it to clean it?

No, the cleaning process is fully integrated into the system, using our disposable FastCLEAN cartridges. Our systems limit damage caused by frequent part handling by doing this.

Do I have to initiate and stop the cleaning process myself? How do I determine this?

The FastCLEAN is cartridge is fully automated and uses a pre-determined amount of length that moves over the fiber end face.

What if the ferrule fails again after it has already been cleaned?

Some defects are stubborn contaminants; others are permanent pits, chips, cracks, or scratches, which will not be eliminated by simply cleaning. You are able to set the number of inspect/clean cycles before it is deemed an ultimate fail and requires re-polishing.
